Industry-hardened low voltage soft starters

Products

Highlights of the MEsoftstart/I soft starter range

Compact DIN rail or panel mount soft starter, covering 3kW to 30kW motors

Available for 340 – 440Vac line voltage; self powered or 24V DC supply voltage

Both soft start and soft stop supported

Under load current trip no flow trip on pumps

Easy to set up; monitor via PC App and LED indicators

Built-in bypass relays in all models

Designed for operations in the harshest conditions:

    • Up to 60C ambient, with zero derating up to 50C
    • Up to 3000m above sea level, with no derating up to 1400m
Get quote

Products

MEsoftstart/Din soft starter models

Soft starter models

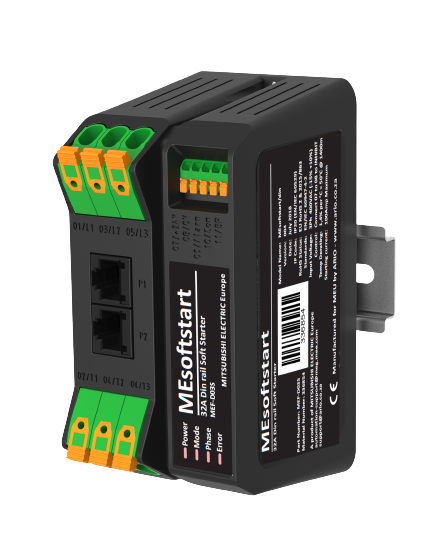

32 DIN Rail Soft Starter

Core models ( two phase control )

    • MEsoftstart – D02
    • MEsoftstart – D02S ( Self powered )

Pro models ( three phase control )

    • MEsoftstart – D03
    • MEsoftstart – D03S ( Self powered )

    16A DIN Rail Soft Starter

    Core models ( two phase control )

      • MEsoftstart – D02L ( Self powered )
      • MEsoftstart – D02LF ( Factory configured )

    Pro models ( three phase control )

      • MEsoftstart – D03L ( Self powered )

      Products

      MEsoftstart/I PRODUCT LINE-UP

      16A MEsoftstart – D02L, D02LF & D03L models

      Click Here

      32A MEsoftstart – D02, D02S, D03 & D03S models

      Click Here

      Products

      16A MEsoftstart – D02L, D02LF & D03L models

      16A continuous current rating Motor sizes (depending on motor duty, bypass installed, etc.)

      MEsoftstart-D02L, -D02LF and -D03L are self-powered All MEsoftstart soft starters support a Modbus RTU interface as a two-wire RS485 port on all the MEsoftstart/Din models except the MEsoftstart-D02LF factory pre-configured model.

      Supply Voltage



      Connection

      400V
      Normal 3-Wire 3 – 11kw
      Inside-delta(6-wire) 5.5 – 18.5kw

      Products

      32A MEsoftstart – D02, D02S, D03 & D03S models

      32A continuous current rating Motor sizes (depending on motor duty, bypass installed, etc.)

      Panel mount recommended for heavy duty applications or currents higher than 25A

      MEsoftstart-D02 and MEsoftstart-D03 models require external 24Vdc power supply MEsoftstart-D02S and MEsoftstart-D03S are self-powered LED flash pattern helps to identify installation problems. Detailed fault report on the PC Application via the Modbus interface.

      Supply Voltage



      Connection

      400V
      Normal 3-Wire 4 – 18.5kw
      Inside-delta(6-wire) 11 – 30kw
